300W Mobile Solar Power System EL-8001

300W Mobile Solar Power System EL-8001

-The design consists of a lithium iron phosphate 4s battery protection board, DC/MPPT Charging circuit, MCU control circuit, inverter circuit, and LCD screen.

-Inverter 300W PURE SINE WAVE AC220V/50Hz, subject to pure resistance load, DC port output 10V-14V/10A, USB QC3.0. It is suitable for camping, emergency communication, medical rescue, fire rescue, and other fields

-The DC Switch is the main switch and the LED screen will light up when turned on the bulb jack and USB port are powered on, and the screen darkens after 20 seconds without load.

-After the DC switch is on, turn on the AC switch -This product has under-voltage protection, over-voltage protection, over current, overload protection, short circuit protection, and temperature protection function

– Smartwatch – Smart Phone – IPad – Laptop – Digital camera – Flashlight – Small washing machine – Car refrigerator – LCD TV – Electric fan – Electric light

– Medical device Charging method -Adapter; DC 18-21V -Solar Panel; 18V-75W AC -AC output; AC220V+5% or AC11Ov+5%

-AC output rated power; 300W 50Hz/60Hz -AC output waveform; the pure sine wave

-AC output socket; Standard socket DC -USB1; QC3.0 Protocol fast charge 40W -USB2/USB3 output; 5V3A -DC Bubble output*5; DC12V-120W Illumination

-Front 10W aluminum lamp cup torch -Side-mounted high-brightness LED 15W panel light Batteries

-Type; 32700 Lithium iron phosphate battery -Capacity 84000mah

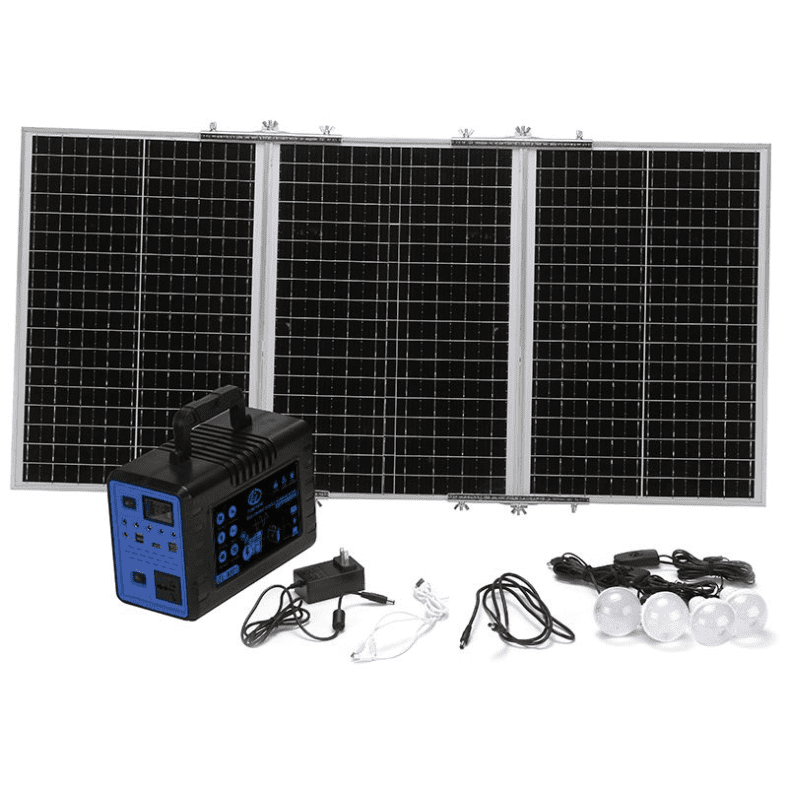

What’s In The Box

1 x 300W Mobile Energy Storage Power Supply

3 x Solar panels

1 x 3 Way Solar Panel Cable

1 x Adapter

1 x USB cable

1 x Double-ended Dc cable

4 x Switch bulb

1 x 3 Way Cellphone Charging Cable
